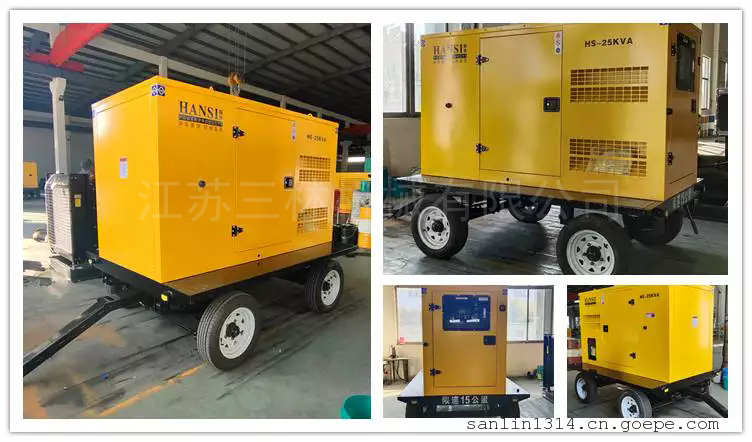

翰丝20KW全自动柴油发电机HS-25KVA -ATS
| 翰丝动力Hansi Power |
翰丝动力柴油发电机组详细参数 |
| 机组型号 Genset Model |
HS-25KVA / HS-25KVA-ATS |
| 动力参数 Engine Data |
动力型号 Engine Model |
4100D |
| 动力型式 Engine Type |
四冲程，水冷，直列 Four stroke,Water-cooled,Direct line,Turbo type |
| 常用功率 Rated Output |
20KW / 25KVA |
| 备用功率 Max. Output |
22KW / 27.5KVA |
| 电压 Voltage (V) |
380/220 |
| 电流 Current (A) |
37 |
| 频率 Frequency (HZ) |
50 |
| 转速 Rated RPM (r/min) |
1500 |
| 冷却方式 Cooling System |
强制水冷 Forced Water-cooled |
| 燃油消耗率 Fuel Consumption (≤g/kw.h) |
≤258 |
| 压缩比 Compression Ratio |
19:01 |
| 缸径*行程 Bore×Stroke (mm) |
100X115 |
| 发动机总排量 Displacement (L) |
3.26 |
| 启动方式 Start Method |
电启动 Electric Start |
| 电机参数 Alternator Data |
功率因数 Power Factor |
0.8滞后 0.8 Lag |
| 绝缘等级 Insulation Class |
H |
| 润滑方式 Lubricating System |
压力飞溅复合式 Pressure,Split,Complex |
| 排气温度exhaust Air Temperature (℃) |
≤470 |
| 海拔要求 Altitude |
≤1000m |
| 环境温度 Environment Temperature (℃) |
40 |
| 接线方式 Connecting Type |
三相四线，Y型绕接 3 Phase and 4 Wires,"Y" type connecting |
| 发火次序 Ignite sequence |
1-3-4-2 |
| 进气方式 Intake Type |
自然吸气 Natually-Aspirated |
| 稳态调速率 Rated Speed Regulation % |
≤±1% |
| 相数 Phase |
3 |
| 尺寸 Dimension |
静音机组净重 Silent Type's Net Weight（kg） |
770 |
| 静音机组外形尺寸 长×宽×高 Silent Type's Dimension Length × Width × Height (mm) |
2000× 850× 1070 |
